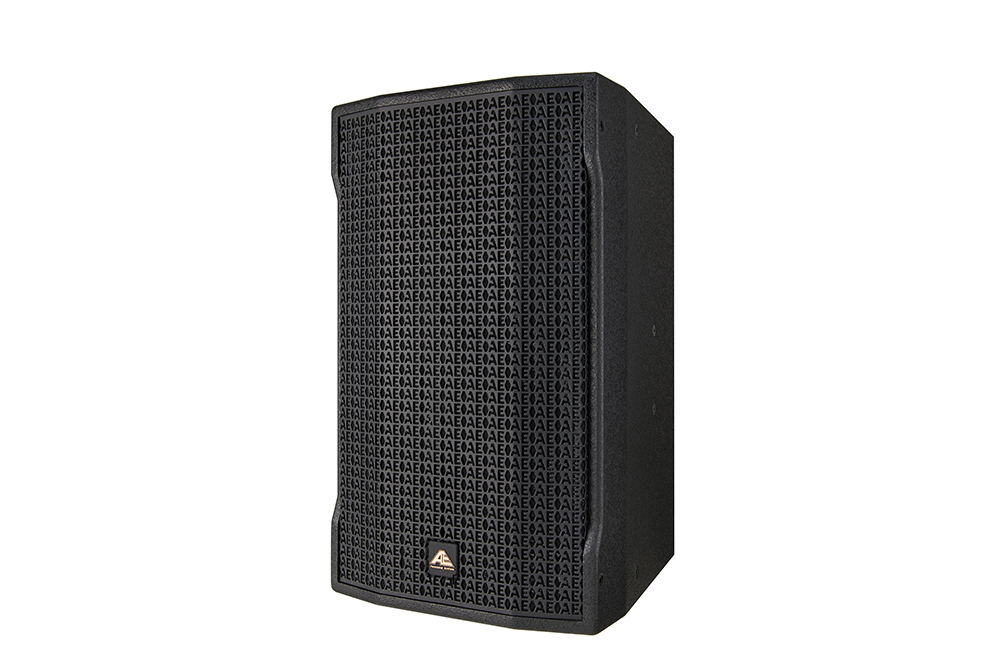

AE-12
- Unit composition: 12 "LF * 1 + 1.75 ° HF"1
- Frequency response（ ± 3dB):40Hz-22kHz
- Rated power (AES): 600W
- Peak power: 1000W
- Sensitivity (1W / 1m, f > 100Hz): 103dB
- Sound pressure level: 127dB
- Maximum sound pressure level (peak): 133dB
- Coverage angle: 90 °( H) × sixty °( V)
- Impedance (ohm}: 4ohm
- Hanging system: M8 threaded hole
- Product size (width, depth, height): 335mm × 410mm × 600mm
- Setting: piece
- Net weight: 22kg
- Parameters
- Unit composition: 12 "LF * 1 + 1.75 ° HF"1
- Frequency response（ ± 3dB):40Hz-22kHz
- Rated power (AES): 600W
- Peak power: 1000W
- Sensitivity (1W / 1m, f > 100Hz): 103dB
- Sound pressure level: 127dB
- Maximum sound pressure level (peak): 133dB
- Coverage angle: 90 °( H) × sixty °( V)
- Impedance (ohm}: 4ohm
- Hanging system: M8 threaded hole
- Product size (width, depth, height): 335mm × 410mm × 600mm
- Setting: piece
- Net weight: 22kg
