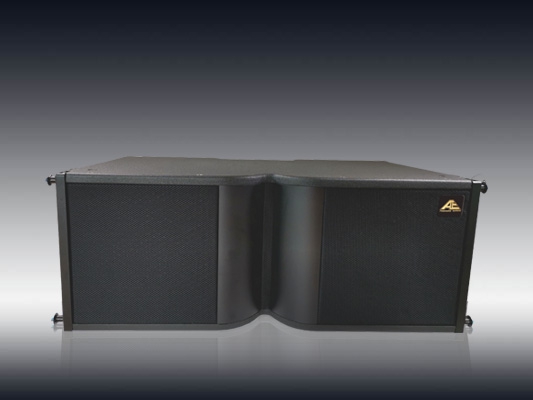

LA-206
- Unit composition: LF2 * 6 "(50mmvc / 134mm rubidium magnet), hf1.1.75" (44mm rubidium magnet)
- Frequency response（ ± 3dB):70Hz-20kHz
- Rated power (AES): 120W (LF) * 2 + 60W (HF) - class D Bi amplified
- Input interface type: 2 * neutrlk NL4
- Sensitivity (1W / 1m, f > 100Hz): 95b
- Sound pressure level: 123dB
- Maximum sound pressure level (peak): 130dB
- Impedance (ohm}: 16ohm
- Radiation angle: 120 ° H × 10V
- Suspension system: three point suspension
- Product size (width, depth, height): 500mm × 300mm × 200mm
- Setting: piece
- Net weight: 11.5kg
- Parameters
- Unit composition: LF2 * 6 "(50mmvc / 134mm rubidium magnet), hf1.1.75" (44mm rubidium magnet)
- Frequency response（ ± 3dB):70Hz-20kHz
- Rated power (AES): 120W (LF) * 2 + 60W (HF) - class D Bi amplified
- Input interface type: 2 * neutrlk NL4
- Sensitivity (1W / 1m, f > 100Hz): 95b
- Sound pressure level: 123dB
- Maximum sound pressure level (peak): 130dB
- Impedance (ohm}: 16ohm
- Radiation angle: 120 ° H × 10V
- Suspension system: three point suspension
- Product size (width, depth, height): 500mm × 300mm × 200mm
- Setting: piece
- Net weight: 11.5kg
