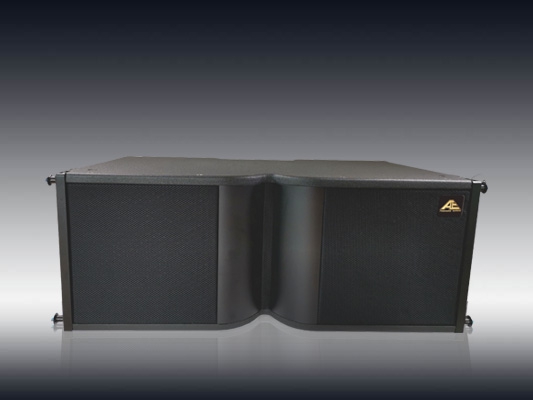

LA-210
- Unit composition: LF2 * 10 "(65mmvc / rubidium magnet), hf1 * 3" (75mm rubidium magnet)
- Frequency response（ ± 3dB):50Hz-20kHz
- Rated power (AES): 300W (LF) * 2 + 150W (HF) - class D Bi amplified
- Input interface type: 2 * neutrlk NL4
- Sensitivity (1W / 1m, f > 100Hz): 102dB
- Sound pressure level: 127dB
- Maximum sound pressure level (peak): 138db
- Impedance (ohm}: 16ohm
- Radiation angle: 120 ° H × 10V
- Suspension system: three point suspension
- Product size (width, depth, height): 801mm × 480mm × 323mm
- Setting: piece
- Net weight: 32kg
- Parameters
- Unit composition: LF2 * 10 "(65mmvc / rubidium magnet), hf1 * 3" (75mm rubidium magnet)
- Frequency response（ ± 3dB):50Hz-20kHz
- Rated power (AES): 300W (LF) * 2 + 150W (HF) - class D Bi amplified
- Input interface type: 2 * neutrlk NL4
- Sensitivity (1W / 1m, f > 100Hz): 102dB
- Sound pressure level: 127dB
- Maximum sound pressure level (peak): 138db
- Impedance (ohm}: 16ohm
- Radiation angle: 120 ° H × 10V
- Suspension system: three point suspension
- Product size (width, depth, height): 801mm × 480mm × 323mm
- Setting: piece
- Net weight: 32kg
